Paper Tube Machinery

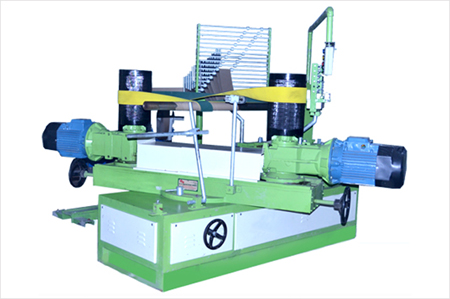

Heavy Duty High Speed Spiral Paper Tube Winding
Machine |
|
Model: KW-6
Maximum Inner Diameter: 20mm
Maximum Inner Diameter: 75mm
Maximum Thickness: 5mm
Speed: 16mtr / min |
Model: KW-10
Maximum Inner Diameter: 50mm
Maximum Inner Diameter: 250mm
Maximum Thickness: 16mm
Speed: 15mtr / min |
Model: KW-15
Maximum Inner Diameter: 50mm
Maximum Inner Diameter: 300mm
Maximum Thickness: 18mm
Speed: 15 mtr / min |
Model: KW-20
Maximum Inner Diameter: 50mm
Maximum Inner Diameter: 500mm
Maximum Thickness: 18mm
Speed: 15mtr / min |
Size: 750 mm (W) x 2000mm (L) x
630mm (H)
Material: M.S. & Cast Iron 1500Mtr per Hour
AC. Electrical Motor
Wt: 1500 Kgs |
| |
|
|
| |
|
Paper Tube Machinery

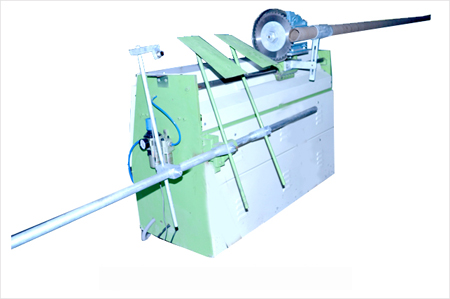

Synchronies Cutoff Machine ( Censor System ) |
|
Size: 1060 mm (H)
x 550 mm x (W) x1290mm (L)
Electric Supply : 2 HP
D.C. 2 HP A.C. &
Supporting Speed Controller Electronic
Wt : 800 Kgs |
| |
| |
| |
| |
| |
| |
| |
| |
|
|
| |
|
Paper
Tube Machinery

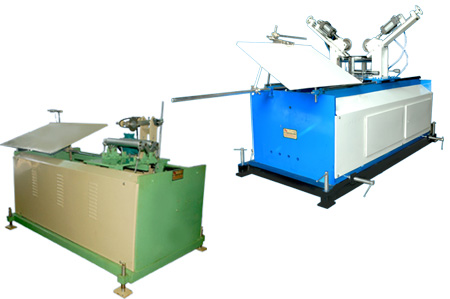

Online Fine Knife Cutting Machine |
 |
|
The offered range of Online
Fine Knife Cutting Machine is
available in varied specifications as per the
needs of the clients. It is manufactured from
high quality parts and is widely used paper tube
industry for cutting works. The offered paper
tube machine is known for its sturdy
construction, optimum performance, longer
service life and smooth operation. The entire
collection of Online Fine Knife Cutting
Machine is available in varied
specifications as per the requirements of the
customer.
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
Paper Tube Machinery
Glue Pot |
|
|
Size : 630mm (H)
x 670mm (w) x 1400mm (L)
Material : M.S
Aluminum. Brass & Cast Iron
Wt : 305, Kg
|
| |
| |
| |
| |
| |
| |
| |
| |
| |
|
|
| |
|
Paper
Tube Machinery

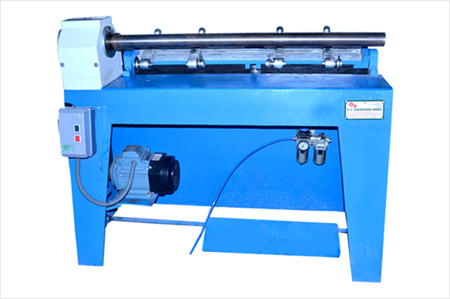

Paper Tube Cutting Machine |
|
1HP :
Maximum Inner Diameter : 150mm
Maximum Cutting Length : 1
Meter
Thickness maximum : 16 mm |
2HP :
Maximum Inner Diameter : 250mm
Maximum Cutting Length : 1
Meter
Thickness maximum : 16 mm |
Size : 940mm (H)
x 515mm (w) x1325mm (L)
Material : M.S & C.I
Wt. 255 Kg |
| |
|
|
| |
|
Paper Tube Machinery

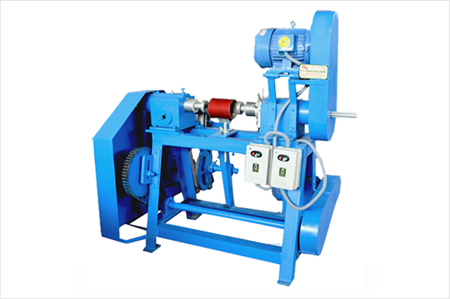

Mechanical POY Polishing Machine |
 |
Working : Tube
Age Polishing
Maximum Inner Diameter : 50mm
Maximum Inner Diameter : 100mm
Maximum Length : 300mm
(Can make as per required length)
Power : 5 HP + 5 HP
Stocks 35 to 40 / min |
| |
| |
| |
| |
| |
| |
| |
|
|
| |
|
Paper
Tube Machinery
POY Pneumatic Polishing Machine |
|
Size : 760 mm (H)
x 760 mm (W) x 1525 mm (L)
Electric Supply -5HP A.C.
Material – M.S. &
C.I.
Stock – 42 / Min |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
Paper
Tube Machinery

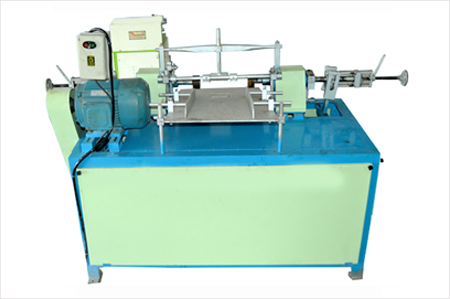

Automatic Both Side Drive System Tube Bending
Machine |
 |
Size : 760 mm (H)
x 760 mm (W) x 1525 mm (L)
Electric Supply -5HP A.C.
Material – M.S. &
C.I.
Stock – 42 / Min |
| |
| |
| |
| |
| |
| |
| |
| |
|
|
| |
|
Paper
Tube Machinery

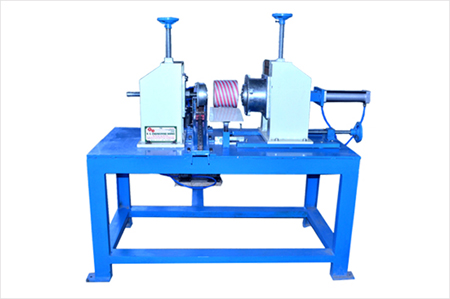

POY Notching Machine (Pneumatic System) |
 |
Size : 600 mm x
750 mm x 600
Electric Supply -1 HP
A.C. Motor
Electric Clutch -24
V.D.M.
Function – ‘v’ Cut. Dip
Cut & Vertical Cut |
| |
| |
| |
| |
| |
| |
| |
| |
|
|
| |
|
Paper
Tube Machinery
POY Notching Machine |
 |
| |
| |
|
|
| |
|
Paper
Tube Machinery

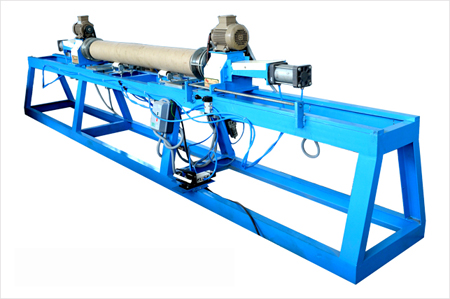

End Trimmer Core Cutting Machine (Pneumatic
System) |
 |
Size : H 760 mm x
W- 560 mm x 1-4500mm
Working Size : 1000mm to
2500mm
Electric Supply -2 HP
A.C. Motor |
| |
| |
| |
| |
| |
| |
| |
| |
| |
|
|
| |
|
Paper
Tube Machinery

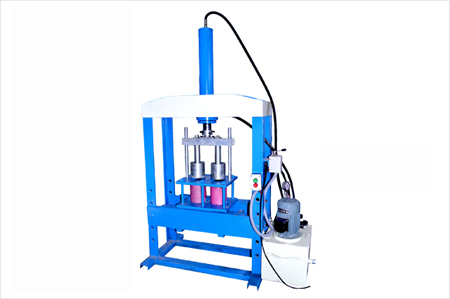

POY Hydraulics Press |
 |
Length Capacity : 100
to 200 mm
Thickness : 5 To 10 mm
Hydraulic cylinder : 1
nos
1.5 HP A.C motor : 1nos
Power pack : 1nos |
| |
| |
| |
| |
| |
| |
| |
| Paper

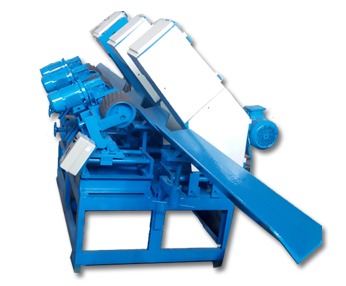

Core Polishing Machine |
|
